Garmin Extended )ut front Mount Edge Forerunner 530 800 810 820 830 1000 1030

Stay ahead of the pack with this extended out-front bike mount that lets you take full advantage of the capabilities of your Edge without compromising your ride. This mount with extended arm allows you to stay in a comfortable heads-up position for easier monitoring and improved safety.

Also compatible with the Forerunner 910XT and 310XT when used with a quick-release kit (sold separately). Simple installation by just removing the screws from the bottom, rotating the inner mount and reinserting the screws.Compatible With

Edge 800 / 810 /820 / 830

Edge 500 / 510 / 520 / 530

Edge 200

Edge 130 / 130 +

Edge Explore / 820 /

Edge Touring
Edge Touring Plus

Also compatible with the Forerunner® 910XT and 310XT when used with a quick-release kit (sold separately)

Forerunner 310XT

Forerunner 910XT

Forerunner 920XT

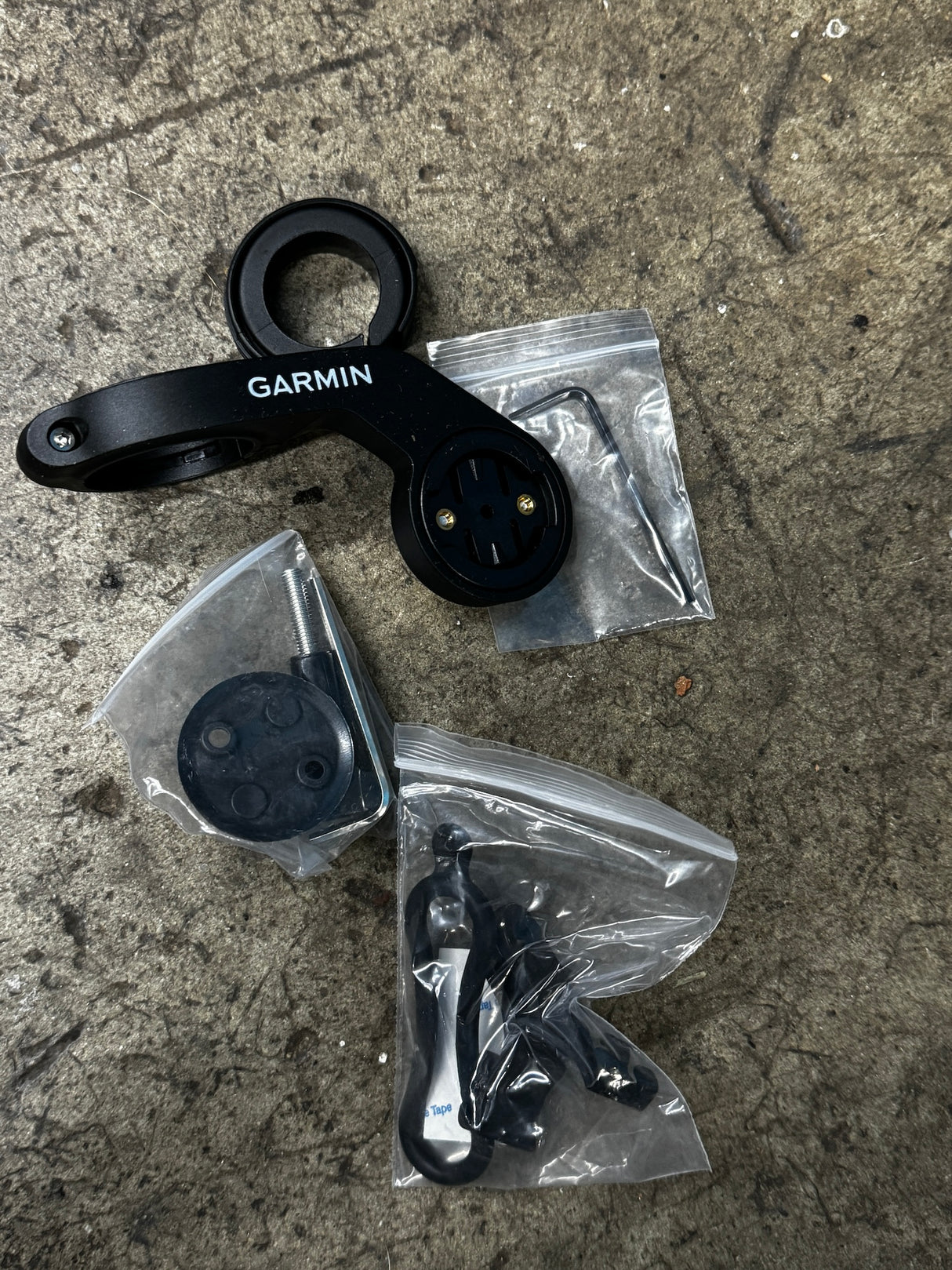

Inside Box : out-front bike mount + hex wrench + 2 adaptors ring

Installing the Out-Front Mount1 Select a secure location to mount the Edge® device where it does not interfere with the safe operation of your bike.2 Use the hex key to remove the screw from the handlebar connector .3 Place the rubber pad around the handlebar:• If the handlebar diameter is 25.4 mm, use the thicker pad.• If the handlebar diameter is 31.8 mm, use the thinner pad.4 Place the handlebar connector around the rubber pad.5 Replace and tighten the screw.NOTE: Garmin® recommends tightening the screw so the mount is secure, with a maximum torque specification of seven lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.6 Align the tabs on the back of the Edge device with the bike mount notches 7 Press down slightly and turn the Edge device clockwise until it locks into place.

Installing the Lever AdapterSome optional accessories require the use of the lever adapter.
